Tantalum Orifice Plates and Thermowell Components

admin Products Tantalum, Tantalum Orifice Plates, Thermowell Components

In environments with corrosive processes, it is rarely the largest piece of equipment that causes the most trouble. Often, it is the small components that become the limiting factor in how well a system performs and how long it runs without incident. Orifice plates and thermowells are a good example. They are simple, but using the right material is key to effective and safe performance.

At InKorr, we supply orifice plates and thermowell components made from tantalum for clients. This article explains what tantalum is, why it matters for these components, and what to consider when specifying small process parts in highly corrosive applications.

What Are Orifice Plates and Thermowells?

Before getting into materials, it is worth briefly explaining what these components do and why their condition matters.

An orifice plate is a precision-machined disc with a hole(s) at its centre, installed across a pipe to create a controlled pressure drop. By measuring the differential pressure on either side of the plate, operators can calculate the flow rate of the fluid passing through. This makes orifice plates one of the most widely used flow measurement devices in industrial processing. They are simple, reliable, and relatively inexpensive compared to other flow measurement technologies. But they work only as well as their condition allows. A corroded or pitted orifice edge changes the loss coefficient, introduces measurement error, and ultimately undermines the accuracy of the entire flow measurement system.

A thermowell is a closed-end tube or fitting that is inserted into a process vessel or pipeline, allowing a temperature sensor to be immersed in the process stream without direct contact with the fluid. This protects the sensor from pressure, flow, and chemical attack while still allowing accurate temperature measurement. The thermowell itself, however, has to withstand whatever the process fluid throws at it. With corrosive work, material selection is critical to both measurement reliability and the physical integrity of the fitting.

Why Standard Materials Fall Short in Corrosive Environments

Many orifice plates and thermowells are manufactured from stainless steel, and in a wide range of applications, stainless steel performs well. It offers good corrosion resistance in many environments, it is readily available, and it is cost-effective to machine. But stainless steel has clear limits. In the presence of strong mineral acids, halogens, wet chlorine, or mixed acid environments, stainless steel corrodes at rates that make it impractical. Even high-performance nickel alloys have their own failure modes in certain chemical combinations.

This is where tantalum becomes the right answer. It is not a common material, and it is not a cheap one, but for applications where other metals fail, tantalum is often the only viable option.

What Makes Tantalum Suitable for These Applications?

Tantalum is a rare, dense, blue-grey metal that belongs to the refractory metal group. What makes it genuinely exceptional in corrosive service is the nature of its oxide layer. When exposed to air or an oxidising environment, tantalum forms an extremely stable, self-healing oxide film on its surface. This film is what gives the metal its outstanding corrosion resistance, and it reforms almost instantly if the surface is scratched or damaged.

In practical terms, tantalum is resistant to attack from virtually all mineral acids at temperatures below 150 degrees Celsius, including hydrochloric acid, sulphuric acid, nitric acid, and phosphoric acid. It also handles mixed acid environments and many organic acids. It is resistant to wet chlorine and a range of other halogen-bearing process streams. Compared to stainless steel or even high-nickel alloys, its resistance in these environments is significantly higher.

The metal is also biocompatible and extremely pure, which matters in pharmaceutical and specialty chemical applications. It does not leach into process streams, which is important when product contamination would have regulatory or quality consequences.

Tantalum does have limitations. It is attacked by hydrofluoric acid and strongly alkaline solutions, particularly at elevated temperatures. It is not suitable for every corrosive service. But for the environments it handles, nothing else comes close.

Tantalum Orifice Plates

For flow measurement in corrosive service, a tantalum orifice plate offers a reliable and long-lasting solution where other materials would degrade rapidly.

The precision of the orifice bore is fundamental to accurate flow measurement. As an orifice plate corrodes, the sharp edge of the bore becomes rounded and pitted, which changes the loss coefficient and introduces error into the flow calculation. In a process where flow accuracy matters for quality control, safety, or custody transfer, this is a problem that compounds over time and is difficult to diagnose without physical inspection of the plate.

A tantalum orifice plate maintains its edge integrity in corrosive service far longer than a standard stainless steel plate would. The bore remains sharp, the surface remains smooth, and the measurement remains reliable. This is particularly important in applications where the plate is not easy to access for routine inspection.

Tantalum orifice plates can be manufactured to standard flange ratings and dimensional specifications, which means they are a direct drop-in solution for existing systems. They do not require exotic flange configurations or special installation procedures. From a practical standpoint, making the switch from a stainless steel plate to a tantalum one is straightforward.

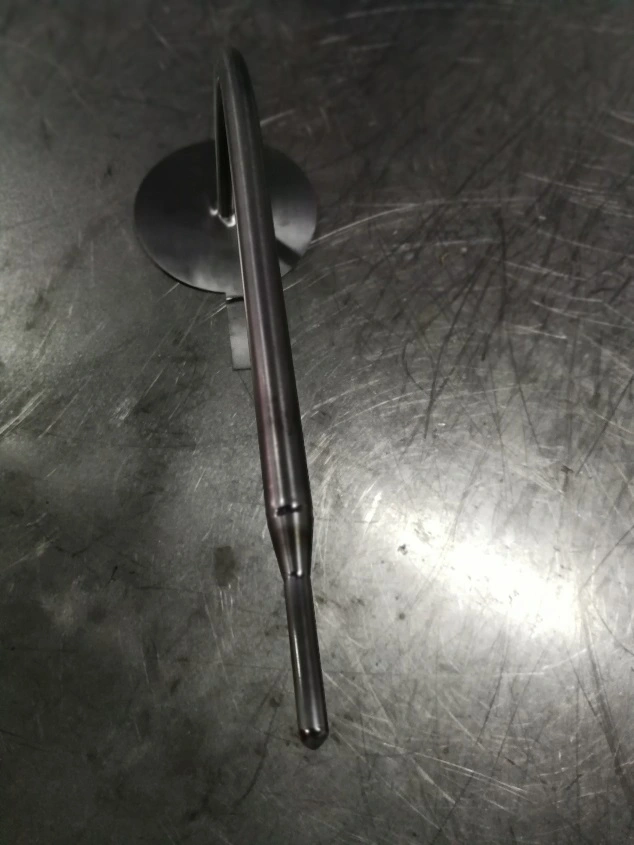

Tantalum Thermowells

In corrosive process streams, a thermowell that is degrading creates two distinct problems. The first is a measurement problem. As the well wall thins through corrosion, its thermal response characteristics change and the accuracy of the temperature reading is affected. The second is a containment problem. A thermowell that has thinned to the point of failure is a failure of the process seal. If it fails in service, the result is a loss of containment, which carries safety and environmental consequences as well as the obvious operational ones.

A tantalum thermowell eliminates corrosion as a failure mode in the environments where the metal performs well. The wall thickness remains consistent over the service life, the thermal response characteristics are stable, and the risk of containment failure through chemical attack is removed.

Thermowells also need to withstand mechanical loading from the process flow. Vortex shedding, the phenomenon where flowing fluid creates oscillating forces on an immersed object, can cause resonance and fatigue failure if the thermowell is not designed with the right geometry and wake frequency characteristics. Tantalum’s density and mechanical properties need to be considered in the thermowell design, particularly in high-velocity process streams. This is another reason why working with a supplier who understands both the material and the application matters.

Small Parts, Long Lead Times, High Consequences

One of the practical realities of working with tantalum components is that they are not off-the-shelf items. Tantalum is a relatively rare metal with a global supply chain that is more constrained than common engineering materials. Lead times for tantalum stock can be longer than for standard metals, and machining tantalum requires specific tooling and process knowledge. This means that specifying tantalum components at the last minute, or treating them the same way you would treat a standard stainless steel fitting, is likely to cause delays.

For plants operating in corrosive service, this argues for having a relationship with a supplier who carries tantalum stock and who has established machining capability for the material. It also makes a strong case for proactive replacement planning rather than waiting until a component fails and then trying to source a replacement urgently.

At InKorr, we supply tantalum orifice plates, thermowells, and other small process components. We understand the requirements, the dimensional standards, and the process conditions that drive material selection. Whether you are fitting out a new plant or replacing failed components in an existing system, we can provide components that are manufactured to the right standard for your needs.

Specifying Tantalum Components: What to Consider

When specifying tantalum orifice plates or thermowells, a few key details drive the decision:

Process fluid and concentration – Tantalum performs across a wide range of acids and corrosive streams, but the specific fluid, its concentration, and its temperature all influence whether tantalum is the right choice and how the component should be dimensioned.

Operating temperature – Tantalum’s corrosion resistance is outstanding at temperatures up to around 150 degrees Celsius in most acid services. Above this, the oxide film becomes less stable in some environments and corrosion rates can increase. Temperature must always be confirmed when selecting the material for a specific application.

Pressure rating and flange specification – Orifice plates and thermowells need to be specified to match the flange rating and bore size of the existing pipework. Standard flange configurations are available in tantalum, and most dimensional requirements can be accommodated in a custom-machined component.

Orifice bore geometry – For orifice plates, the bore type (sharp-edged, conical, or quadrant) and the beta ratio need to be determined based on the flow measurement requirements and the pipe diameter. These parameters directly affect the accuracy of the measurement and must be calculated correctly.

Thermowell insertion length and wake frequency – For thermowells, the insertion length, outer diameter, and tip geometry all influence both the thermal performance and the mechanical response under flow conditions. A wake frequency calculation should be performed for any thermowell in a flowing process stream to confirm it will not be susceptible to resonance.

Conclusion

Orifice plates and thermowells are not glamorous components, but they carry a significant responsibility in process systems. They influence measurement accuracy, process control, and in the case of thermowells, containment integrity. In corrosive environments, specifying the right material for these components is not a minor detail. It is a decision that affects how the plant performs and how often those components need to be replaced.

Tantalum is not the right answer for every application, but for the environments where standard metals fail, it is one of the few materials that genuinely holds up. Its corrosion resistance is exceptional, and that resistance translates directly into longer component life, more reliable measurement, and fewer unplanned interventions.

If you are operating in a corrosive process environment and you are replacing orifice plates or thermowells more often than you should be, it is worth having a conversation about tantalum. Get in touch with the InKorr team to discuss your application and find out whether a tantalum component is the right fit for your process.

March 27 2026

What is DSI?

admin Products Direct Steam Injection, DSI

What Is Direct Steam Injection?

Direct Steam Injection (DSI) is a highly efficient method of heating liquids by injecting steam directly into the process fluid. Unlike traditional heat exchangers that rely on indirect heat transfer across a metal surface, DSI transfers thermal energy instantly through direct contact between steam and liquid. This fundamental difference in approach eliminates thermal resistance entirely, the very barrier that causes energy loss and sluggish response times in conventional systems.

In industries where speed, precision, and efficiency are not just desirable but critical to product quality and operational viability, DSI is increasingly becoming the preferred thermal solution. As businesses face growing pressure to reduce energy consumption, cut operating costs, and improve process reliability, the appeal of a technology that addresses all three simultaneously is hard to ignore.

DSI Diagram

How Direct Steam Injection Works

At its core, DSI is a simple but remarkably powerful concept. Steam is injected into a liquid stream through a specially engineered nozzle or injector. As the steam condenses upon contact with the cooler process fluid, it releases its latent heat directly and immediately into the liquid, causing a rapid and controlled temperature rise. There is no intermediate surface, no thermal lag, and no energy wasted heating metal before it can heat your product.

Because the steam fully condenses into the product stream, nearly all of the available thermal energy is utilised. This makes DSI one of the most thermally efficient heating methods available in industrial processing today.

Key characteristics of DSI systems include:

Instant heat transfer through direct steam-to-liquid contact
No heat transfer surface to foul, scale, or degrade over time
Precise temperature control achievable with the right system design
Compact equipment footprint compared to traditional heating systems

Why Choose Direct Steam Injection?

1. Unmatched Heating Speed

DSI delivers an immediate temperature rise, making it ideal for processes that require rapid heating or tight thermal control. There is no lag time associated with warming up metal surfaces, a common inefficiency in traditional heat exchangers where the heating medium must first transfer energy to a wall before that wall can transfer energy to the product. With DSI, the steam and the fluid are in direct contact, and the temperature response is essentially instantaneous. For time-sensitive processes or high-throughput production lines, this responsiveness translates directly into productivity gains.

2. Exceptional Energy Efficiency

By eliminating the physical barrier between steam and fluid, DSI systems minimise heat loss at every stage of the process. Almost all the energy contained within the steam is transferred directly into the product rather than being dissipated through equipment or lost to the environment. Over time, this efficiency advantage compounds into meaningful reductions in energy bills and carbon emissions, both of which are increasingly important considerations for modern industrial operations striving to meet sustainability targets.

3. Reduced Fouling and Maintenance

Traditional heat exchangers are well known for their susceptibility to fouling, scaling, and corrosion on heat transfer surfaces. These build-ups reduce thermal efficiency, increase pressure drop, and ultimately lead to costly cleaning and replacement cycles. DSI removes this issue entirely. With no plates, tubes, or transfer surfaces involved in the heating process, there is simply nothing to foul or corrode in the same way. Maintenance requirements are significantly reduced, equipment uptime improves, and the unpredictable costs associated with surface degradation are largely eliminated.

4. Compact and Scalable Design

DSI systems are typically far smaller and simpler in configuration than conventional heating equipment. This makes them easier to install in existing facilities, simpler to integrate into current process lines, and more straightforward to scale as production demands grow. Businesses can expand capacity or adapt processes without the major infrastructure overhauls that traditional systems often require, a significant advantage for operations that need flexibility.

Common Applications of DSI

Direct Steam Injection is widely used across industries where rapid, efficient, and hygienic heating is essential.

Food and Beverage Processing – DSI is particularly well suited to pasteurisation and sterilisation, where precise temperature control and rapid heat delivery are critical to both product safety and quality. It is also widely used for heating sauces, dairy products, and liquid foods, as well as for maintaining hygienic processing conditions throughout production.

Chemical and Industrial Processing – In chemical plants and industrial facilities, DSI is used to heat process fluids and slurries, maintain reactor temperatures, and support cleaning-in-place (CIP) systems where rapid heating of cleaning solutions is required.

Pulp and Paper – Stock heating and process water temperature control are common applications in this sector, where consistent thermal performance is essential to maintaining product quality.

Mining and Heavy Industry – Slurry heating and process water management are key uses in mining environments, where robust, low-maintenance solutions are essential given the harsh operating conditions.

Important Considerations Before Implementation

While DSI offers significant advantages, it is not universally suitable for every application, and understanding its limitations is essential to making the right decision for your process.

Product Dilution is the most important consideration. Because steam condenses directly into the process fluid, it adds water to the product. In some applications this is entirely acceptable or can be compensated for in process design. In others, where precise concentration control is critical, it may require careful management or may rule DSI out altogether.

Steam Quality is equally important, particularly in food, beverage, or pharmaceutical applications. DSI requires high-quality, clean steam that meets appropriate standards for direct product contact. Contaminated or low-quality steam can directly affect product integrity, so steam generation and treatment must be considered as part of the overall system design.

System Design and Control is where the success or failure of a DSI installation is often determined. Proper injector design, sizing, and control systems are critical to achieving stable, accurate, and repeatable temperature regulation across varying flow rates and operating conditions. This is where working with an experienced provider like InKorr becomes not just beneficial, but essential.

DSI

DSI vs Traditional Heat Exchangers

Feature	Direct Steam Injection	Traditional Heat Exchangers
Heat Transfer Speed	Instant	Gradual
Energy Efficiency	Very High	Moderate
Fouling Risk	Minimal	High
Maintenance	Low	Moderate to High
Footprint	Compact	Larger
Product Dilution	Yes	No

The Future of Industrial Heating

As industries push for greater efficiency, lower emissions, and reduced downtime, technologies like Direct Steam Injection are becoming increasingly central to modern process design. DSI represents a broader shift in industrial thinking, away from complex, maintenance-heavy systems and towards simpler, more direct, and more effective thermal solutions that maximise energy use while minimising operational complexity.

The economic case is compelling, but so is the environmental one. As businesses face increasing regulatory and social pressure to reduce their energy footprint, investing in inherently efficient technologies like DSI is a forward-looking decision that delivers returns both now and into the future.

Partner with Experts in Thermal Solutions

At InKorr, we help businesses implement advanced heating solutions that improve performance, reliability, and long-term value. Whether you are exploring DSI for the first time or looking to optimise an existing system, our team can guide you through every stage, from initial design and engineering through to integration, commissioning, and long-term maintenance support.

If your current heating system is slow, inefficient, or prone to fouling, Direct Steam Injection could be the solution your process needs. Get in touch with the InKorr team today to explore how DSI can transform your thermal performance.

February 18 2026

Choosing the Right Milk Cooler for Your Australian Dairy Farm: A Local Manufacturing Advantage

admin Products dairy farm, dairy farming, milk cooler, milk coolers

The Critical Role of Milk Cooling in Modern Dairy Operations

For Australian dairy farmers, the journey from cow to consumer begins at the milking station, where rapid and efficient cooling is essential for maintaining milk quality, meeting regulatory standards, and maximising profitability. Within two hours of milking, raw milk must be cooled to 5°C or below to inhibit bacterial growth and preserve milk quality, making your choice of milk cooling equipment one of the most critical decisions for your operation.

Failure to meet temperature requirements is not simply a quality issue. It can result in milk rejection, financial loss, and increased regulatory scrutiny. Cooling performance directly affects bacterial counts, shelf life, and farm income. Consistent, reliable cooling protects your processor relationship and ensures you remain compliant with Australian Dairy Food Safety standards.

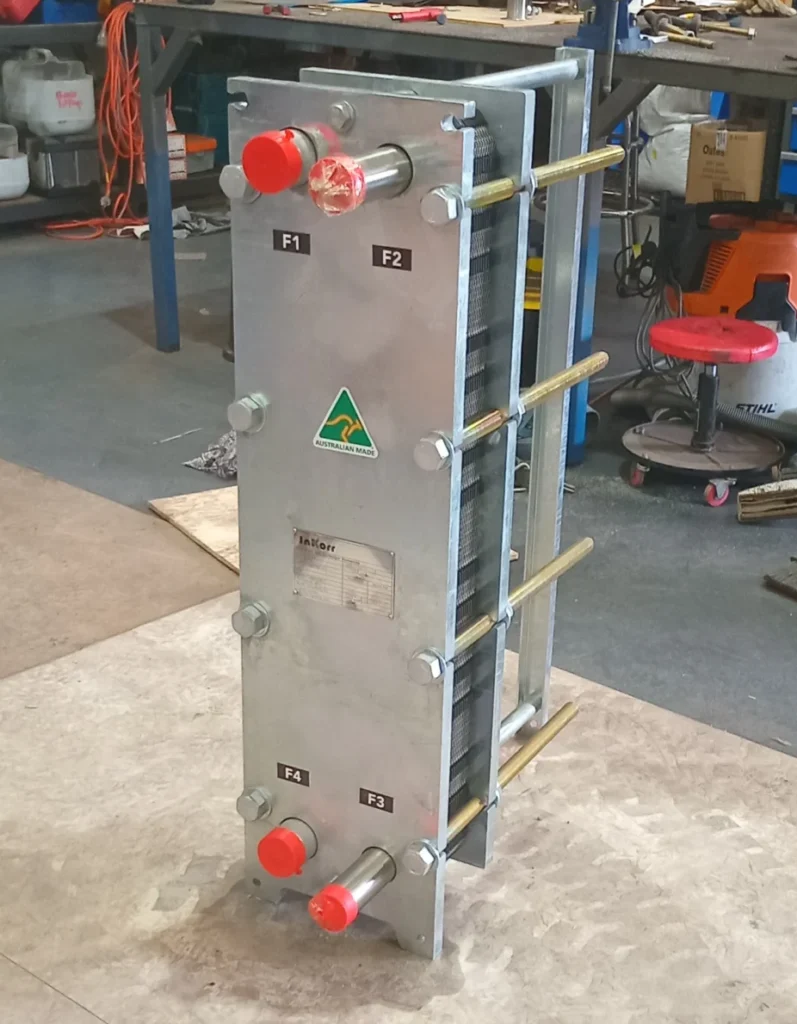

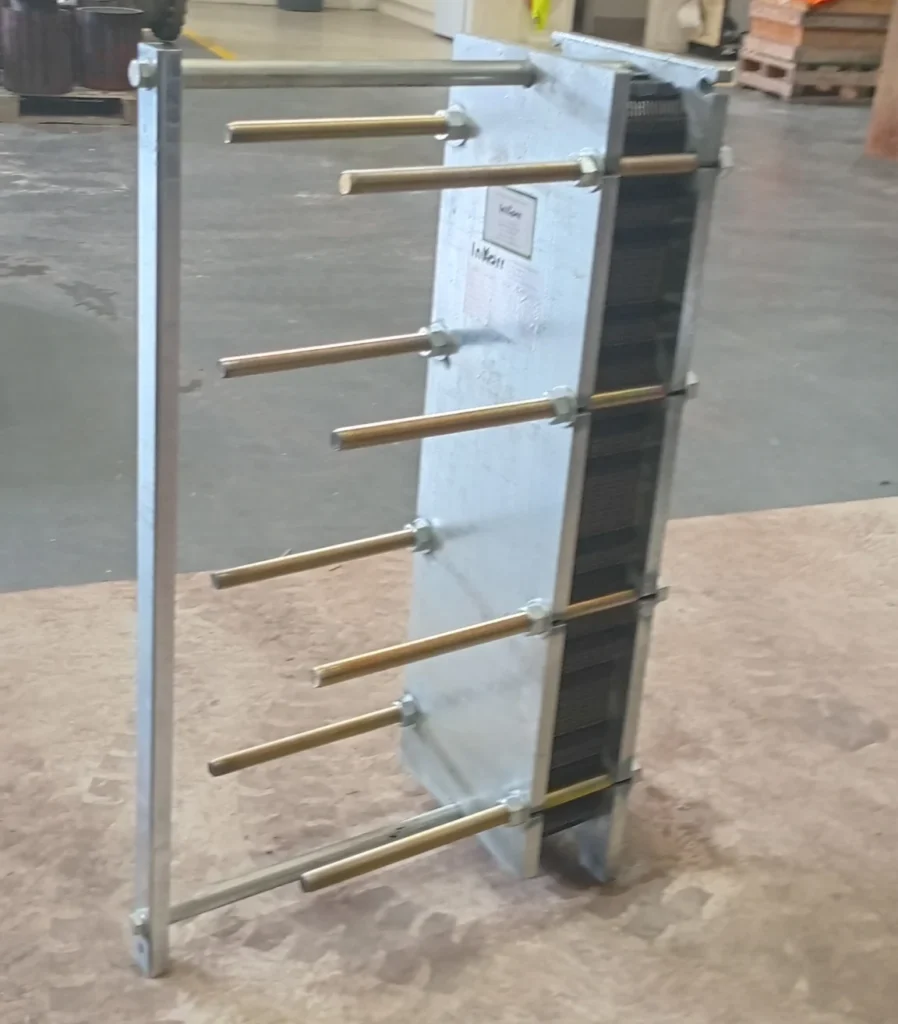

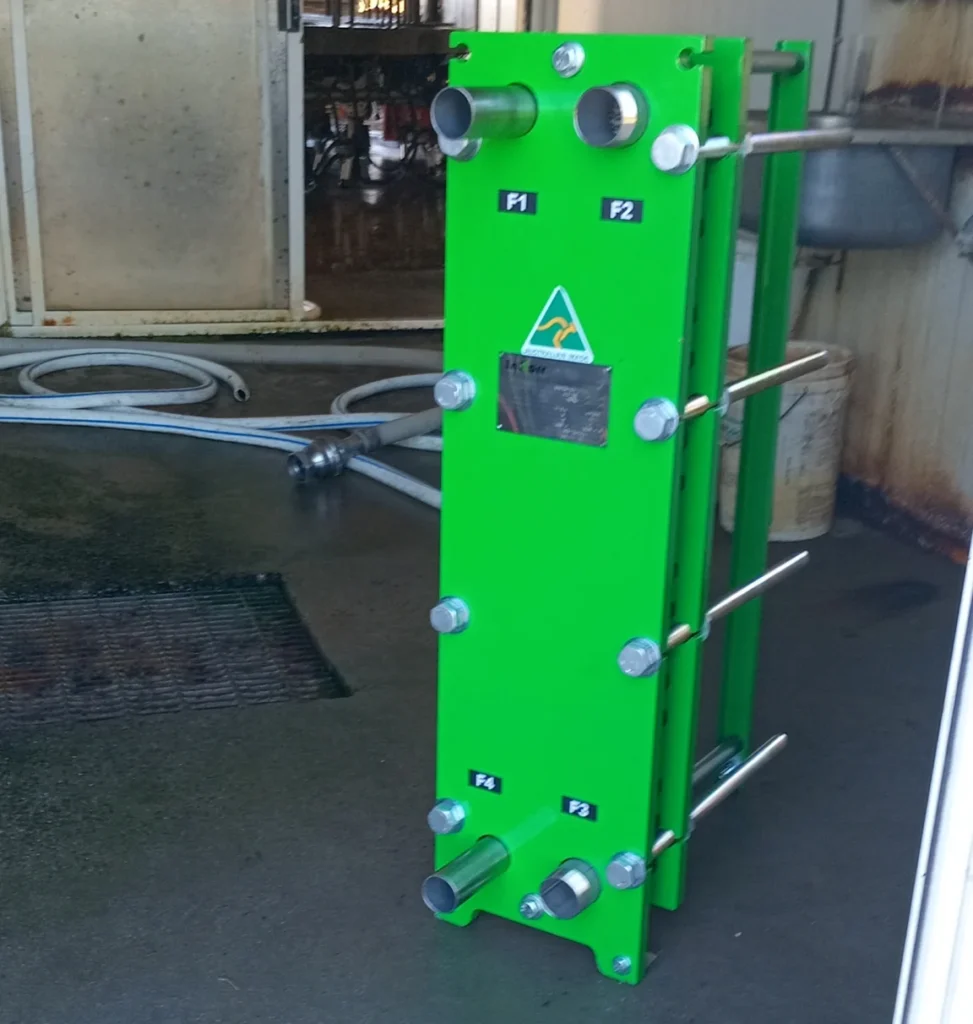

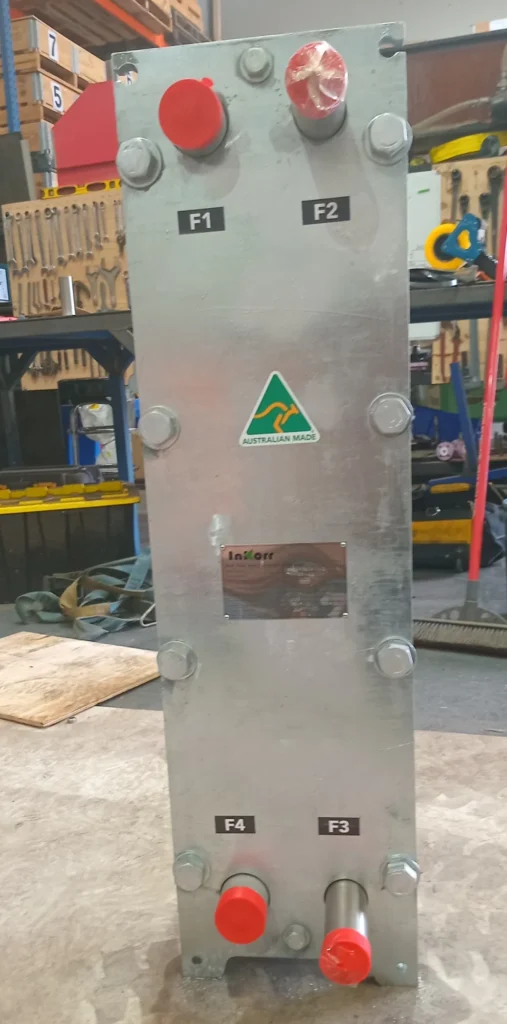

Milk cooler

Why Milk Cooling Technology Matters

Modern plate heat exchanger technology has revolutionised milk cooling for Australian farmers, offering significant advantages over traditional bulk tank cooling:

Immediate cooling reduces bacterial growth and extends milk shelf life.
Energy efficiency lowers operational costs through optimised heat transfer.
Compact design saves valuable space in milking parlours.
Reduced cleaning time with efficient CIP (clean-in-place) capabilities.
Lower water consumption compared to older cooling technologies.

Plate heat exchangers achieve these benefits through highly efficient heat transfer design. Thin, corrugated stainless steel plates create a large surface area in a compact frame, allowing milk to flow in a thin film across cooled surfaces. The corrugation generates turbulence, improving thermal exchange and rapidly removing heat in a single pass.

Understanding Your Milk Cooler Options: Single vs. Dual Bank Systems

Selecting between single and dual bank systems is not just about capacity. It is about matching your cooling configuration to herd size, water availability, energy costs, and long-term operating strategy.

Single Bank Milk Coolers

Single bank plate heat exchangers use one cooling stage, typically chilled water or glycol, to bring milk down from milking temperature, approximately 35 to 37°C, to the required storage temperature of 4 to 5°C. These systems are ideal for smaller to medium-sized dairy operations where simplicity and lower capital investment are priorities.

Because the refrigeration system performs the full cooling load, single bank systems are straightforward to install and maintain. They offer reliable performance and are well suited to farms with moderate milk volumes and dependable chilled water supply.

Best suited for:

Herds of 50-200 cows
Operations with a reliable chilled water supply
Farms looking for a straightforward, cost-effective solution

Dual Bank Milk Coolers

Dual bank systems employ two-stage cooling. The first stage uses mains water for pre-cooling, reducing milk temperature to approximately 15 to 18°C. The second stage then uses chilled water or glycol for final cooling to 4 to 5°C.

This staged approach significantly reduces the refrigeration load. By removing a large proportion of heat using mains water before refrigeration engages, dual bank systems can reduce compressor energy consumption by 30 to 50 percent depending on regional water temperatures.

In addition to energy savings, pre-cooling water can often be reused for stock drinking water, yard washdown, or irrigation. This improves overall water efficiency and adds further operational value.

Best suited for:

Larger operations (200+ cows).
Farms focused on maximising energy efficiency.
Operations in regions with good quality, cool mains water.
Dairies that are looking to significantly reduce refrigeration running costs.

Frame Material Selection: 304 Stainless Steel, Carbon Steel, or Galvanised?

The choice of construction material significantly impacts longevity and total cost of ownership. Dairy environments are inherently corrosive due to washdowns, humidity, cleaning chemicals, and organic exposure. Selecting the right material ensures long-term durability and reduces maintenance risk.

304 Stainless Steel

The gold standard for milk cooling applications. Offers superior corrosion resistance, exceptional hygiene properties, and extended service life. Fully compliant with Australian dairy industry standards. Stainless steel performs particularly well in high-humidity or coastal environments and resists degradation from cleaning chemicals. While representing a higher initial investment, 304 stainless steel typically delivers the lowest total cost of ownership due to its durability and minimal maintenance requirements.

Carbon Steel

A cost-effective option for larger installations or farms balancing budget considerations with solid performance. Carbon steel frames provide structural strength at a lower price point, though they rely on protective coatings to prevent corrosion. Over time, coatings may require maintenance to preserve structural integrity.

Galvanised Steel

Provides good corrosion protection at a competitive price point. The galvanised coating offers improved resistance compared to untreated carbon steel and presents a practical middle ground between carbon steel and stainless steel for budget-conscious operations. Suitability depends on environmental exposure and maintenance practices.

When selecting frame materials, farmers should consider not only upfront cost, but environmental conditions, maintenance capacity, and expected system lifespan.

The InKorr Difference: Australian-Made for Australian Conditions

While global brands offer proven technology, Australian dairy farmers are increasingly recognising the compelling advantages of locally manufactured solutions from InKorr, based in Melbourne.

Australian dairy conditions vary significantly across regions, from coastal humidity to inland heat and water quality differences. Locally engineered systems are designed with these realities in mind.

Local Manufacturing Advantage

Faster delivery times – Weeks, not months. When international supply chains are disrupted or slow, InKorr’s Melbourne manufacturing facility means your operation isn’t held hostage to container shipping schedules.

Customisation flexibility – Do you need a specific configuration for your unique setup? Local manufacturing means our engineers can adapt designs to suit your farm’s layout, your region’s water quality conditions, and your specific herd size.

Direct technical support – Speak directly with the engineers who designed and built your system. No navigating international call centres or waiting days for responses across time zones.

Competitive pricing – Without international freight, import duties, and multiple distribution mark-ups, InKorr delivers premium Australian-made quality at genuinely competitive prices.

Local Service Providers – With a Local Service Provider available to assist with any issues you may have, worrying about downtime is a thing of the past.

Proven Performance: The Westfalia Partnership

InKorr’s reputation for quality and reliability has earned the trust of industry leaders, including Westfalia Warragul. Their endorsement speaks directly to InKorr’s ability to meet the exacting standards of global dairy equipment leaders.

After speaking with Mark at Westfalia, we found our units were very easy to install and hot swap with existing equipment, and they met the standards of Westfalia and their customers.

This partnership is a testament to InKorr’s capability to manufacture to international standards while maintaining the agility and responsiveness that only a local manufacturer can offer.

Making the Right Choice for Your Dairy Operation

When selecting a milk cooler for your Australian dairy farm, consider these key factors:

Herd Size and Milk Volume – Determines the cooling capacity you require.
Water Quality and Availability – Influences single vs. dual bank selection.
Energy Costs – Dual bank systems deliver meaningful long-term energy savings.
Budget Constraints – Balance initial investment against total cost of ownership.
Service and Support – Local manufacturing means faster, more affordable response times.
Customisation Needs – Unique farm layouts may require adapted designs.
Compliance Requirements – Ensure systems meet Australian Dairy Food Safety regulations.

A structured evaluation of these factors ensures your cooling solution aligns with both current operational needs and future growth plans.

Why Australian Dairy Farmers Are Choosing InKorr

In an industry where equipment reliability directly impacts farm profitability and milk quality, Australian dairy farmers are increasingly turning to InKorr for their milk cooling needs:

Australian-made quality meeting international standards

Flexible material options – 304 SS, carbon steel, and galvanised

Single and dual bank configurations for all herd sizes

Proven reliability trusted by industry leaders like Westfalia

Local engineering support when you need it most

Competitive pricing without compromising on quality

Fast delivery from our Melbourne manufacturing facility

For farms seeking dependable performance, regulatory confidence, and long-term value, InKorr provides a practical and future-focused solution.

Ready to Upgrade Your Milk Cooling System?

Whether you’re building a new milking parlour or replacing ageing cooling equipment, InKorr offers the expertise, quality, and local support Australian dairy farmers deserve.

Our team understands the unique demands of Australian dairy operations, from water quality variations across different regions to the specific requirements of various dairy processor standards. We’re not just selling equipment; we’re partnering with Australian farmers to deliver reliable, efficient milk cooling solutions that enhance profitability and protect milk quality.

InKorr – Australian-made heat transfer equipment for Australian conditions. From our Melbourne manufacturing facility, we design, manufacture, and maintain heat transfer equipment for dairy, food & beverage, chemical processing, and industrial applications across Australia and New Zealand.

February 4 2026

Reducing Complexity: Why Standardising Heat Exchangers Lowers Costs and Improves Reliability

admin Products heat exchanger costs, heat exchanger economics, heat exchanger repair, heat exchanger standard

In many industrial operations, heat exchangers are critical assets. They support core processes across HVAC, food and beverage, chemical processing, power generation and manufacturing. In many cases, system performance, energy efficiency and product quality depend directly on their reliability. Yet despite their importance, heat exchanger systems are often far more complex than they need to be. Over time, the accumulation of custom designs, one-off specifications and inconsistent equipment choices can quietly drive up costs and introduce unnecessary operational risk.

Standardising heat exchangers is a reliable way to reduce complexity, lower lifecycle costs and improve system reliability. Rather than limiting flexibility, standardisation creates consistency, efficiency and predictability across the entire operation. When applied effectively, it allows organisations to maintain performance requirements while reducing variation and uncertainty.

The Hidden Cost of Complexity

Custom or highly varied heat exchanger designs can seem beneficial at first, particularly when optimising for a specific requirement or site constraint. However, as systems scale, age or are modified over time, complexity often becomes a liability rather than an advantage.

Common issues include:

Higher engineering and design costs for each new installation
Longer lead times due to bespoke manufacturing
Increased spare parts inventory and storage requirements
Greater maintenance effort and higher risk of incorrect part replacement
Reduced operational familiarity among technicians

These challenges compound over time, particularly for organisations operating multiple sites or large arrangements of heat exchangers. What begins as a tailored solution can evolve into a fragmented asset base that is costly to manage and difficult to standardise later.

How Standardisation Reduces Capital and Operating Costs

Standardised heat exchangers use consistent designs, materials and formats across applications where possible. This approach delivers cost savings at multiple stages of the asset lifecycle, from initial procurement through to long-term maintenance and replacement.

From a capital expenditure perspective, standard units benefit from economies of scale. Manufacturing costs are lower, procurement is simpler and lead times are more predictable. Engineering teams also spend less time redesigning equipment that already performs reliably in similar conditions, freeing up resources for higher value activities.

From an operational standpoint, maintenance costs are reduced through:

Fewer spare parts to stock and manage
Faster fault diagnosis due to familiar layouts
Shorter downtime when replacements are readily available
Simplified training for maintenance personnel

Over the life of the equipment, these savings often outweigh the benefits of custom designs, particularly in environments where uptime and operational continuity are critical.

Improved Reliability Through Proven Designs

Reliability is closely linked to repetition and experience. Standardised heat exchangers are typically based on designs that have been tested across multiple installations and operating environments, allowing performance characteristics and limitations to be well understood.

This results in:

Fewer unexpected failures
Reliable performance metrics under defined conditions
Improved confidence in thermal and pressure ratings
Easier identification of wear patterns and maintenance intervals

By contrast, one-off designs may introduce unknown risks that only become apparent after extended operation, increasing the likelihood of unplanned outages or premature equipment failure.

Faster Maintenance and Reduced Downtime

When equipment is standardised, maintenance becomes faster and more predictable. Technicians are already familiar with the unit layout, gasket types, plate patterns or tube arrangements. Documentation is consistent, and procedures do not need to be relearned for every system or site.

In industries where downtime is costly, this familiarity can significantly reduce mean time to repair. In many cases, spare heat exchangers or components can be swapped immediately rather than waiting for custom parts to be manufactured, helping operations return to service more quickly.

The impact of standardisation becomes clearer when comparing lifecycle utility, maintenance and downtime implications in a typical multi-unit installation. The example below illustrates the difference between a standardised five-unit 5 x 450 kW system and a customised configuration operating under similar load conditions over a three-year period.

Standard vs Customised Comparison Table

While the customised configuration shows slightly lower upfront utility costs in some cases, total maintenance and storage costs are significantly higher over three years. More importantly, downtime exposure increases due to model variation and limited parts interchangeability. The standardised configuration demonstrates lower overall lifecycle cost and reduced operational risk, primarily driven by spare part availability, training efficiency and faster service turnaround.

Supporting Scalability and Future Growth

Standardisation also supports long-term scalability. As operations expand, new systems can be integrated without reinventing specifications or retraining staff. Procurement teams can negotiate better supplier agreements, and asset management becomes more streamlined and transparent.

For organisations planning growth, mergers or multi-site operations, a standardised heat exchanger strategy creates a strong foundation for consistency, cost control and operational resilience.

When Customisation Still Makes Sense

Standardisation does not mean eliminating all custom solutions. Certain applications with extreme temperatures, aggressive media or strict space constraints may still require bespoke designs. The key is to limit customisation to where it genuinely adds value, while standardising the majority of applications wherever feasible.

A balanced approach often delivers the best outcome, combining the efficiency of standardisation with targeted customisation where it is truly justified.

Stainless Steel Shell and Tube Heat Exchanger

June 2 2025

Heat Exchanger Guide

admin Products, Service

In this heat exchanger guide, we’ll explore how heat exchangers work, their different types, industry applications, pros and cons, and emerging innovations in the industry. Our heat exchanger guide will provide you with the knowledge you need to be able to make an informed decision for what type of heat exchanger is right for you.

What Is the Purpose of a Heat Exchanger?

A heat exchanger transfers thermal energy from a hotter fluid or gas to a cooler one. This can be for heating or cooling processes. A barrier such as a solid wall separates the two fluids, allowing heat to flow while keeping them from coming into contact. This process boosts energy efficiency by recovering heat that would otherwise go to waste. Read below to see the different types of heat exchangers our heat exchanger guide covers.

Types of Heat Exchangers

There are several types of heat exchangers available, each designed for specific conditions and applications. At InKorr, we offer a comprehensive range including:

Plate Heat Exchangers: These consist of multiple thin, corrugated plates that create channels for fluid flow. They offer a high surface area for heat transfer, making them extremely efficient. They have a compact design, and are easy to expand or maintain.

Shell and Tube Heat Exchangers: Shell and tube units consist of a bundle of tubes enclosed within a cylindrical shell. One fluid flows through the tubes while the other flows over them within the shell. They are ideal for high-pressure and high-temperature applications and are easy to clean and service.

Graphite and Non-Metallic Heat Exchangers: These are specifically engineered for handling corrosive fluids. Graphite offers exceptional thermal conductivity, superior corrosion resistance, and a long service life.

Crossflow Welded Plate Heat Exchangers: Crossflow combines the benefits of plate technology with the strength of welded construction. They are designed for high-pressure duties where a fully gasket-free design is needed, enhancing durability and thermal performance.

Shell and Plate Heat Exchangers: A hybrid design that integrates plates within a shell. They combine the high efficiency of plate heat exchangers with the robust construction of shell-and-tube designs, making them suitable for demanding applications involving pressure or temperature variations.

Spiral Heat Exchangers: Built with two flat surfaces wound into a spiral, these units are compact, self-cleaning, and highly efficient. Their design resists clogging, makes maintenance easier, and is ideal for viscous fluids.

Applications Across Industries

Heat exchangers play a vital role in a wide array of industries. In power plants, they transfer heat from one process to another, often converting steam to mechanical energy. Chemical processors and oil refineries rely on heat exchangers to manage extreme temperatures and pressures during chemical reactions. In HVAC systems, they regulate indoor temperatures by transferring heat between air and fluid systems.

Food processing and dairy industries use heat exchangers to pasteurise, cook, or cool ingredients efficiently. The pharmaceutical sector employs them for maintaining precise temperature control during production. Laboratories, mining operations, and the automotive industry (especially in radiators) all benefit from specialised heat exchanger designs to optimise their operations.

Heat Exchanger Guide: How Design Affects Efficiency and Performance

The efficiency of a heat exchanger depends heavily on its design, flow characteristics, and how well it matches the demands of the application. Plate heat exchangers typically deliver the highest thermal efficiency. Their corrugated plates create highly turbulent flow even at low fluid velocities, which maximises heat transfer between fluids. The compact design and large surface area also contribute to quick temperature changes and minimal heat loss.

Shell and tube heat exchangers provide moderate to high efficiency. They are well-suited for high-pressure and high-temperature applications where other types may struggle. Their durability and ability to handle large heat duties make them a reliable choice in demanding industrial settings.

Spiral heat exchangers also perform at a high level due to their single-channel flow path. This unique design promotes consistent turbulence, which improves heat transfer while helping to minimise fouling. Their self-cleaning nature makes them particularly efficient in systems where scaling or contamination might otherwise reduce performance.

Selecting the right type of heat exchanger ensures optimal energy use, lower operational costs, and more reliable process control. Matching the efficiency characteristics of the design to the specific application is key to achieving long-term performance benefits.

*Thermal performance in a plate heat exchanger plate.*

Can Heat Exchangers Be Repaired?

Technicians can repair many heat exchangers, and doing so is often more economical than a full replacement. The repairability depends largely on the exchanger’s design and the extent of the damage. For shell and tube heat exchangers, repairs can include plugging leaking tubes to isolate them from the system, replacing damaged tubes, or welding cracks or wear spots in the shell. Technicians can remove and replace tube bundles when necessary, making these exchangers highly serviceable.

In plate heat exchangers, technicians can disassemble the unit to replace individual plates and gaskets that have become worn, cracked, or corroded. Technicians can thoroughly clean and refurbish the frame to restore performance and extend operational life. Re-gasketing, reassembly, and pressure testing are standard steps in this process.

Timely repairs not only prevent larger failures but also reduce downtime and cut costs associated with emergency shutdowns. With proper maintenance and repair, many heat exchangers can remain in service for decades.

What Affects the Lifespan of a Heat Exchanger?

The lifespan of a heat exchanger is influenced by multiple interrelated factors. One of the most significant is the nature of the fluids running through it. Corrosive chemicals, high-salinity water, or fluids with suspended solids can cause internal erosion, corrosion, and fouling, all of which degrade performance and shorten service life.

Water quality is especially critical, as minerals can accumulate on internal surfaces, forming scale that restricts flow and reduces thermal efficiency. Similarly, dirty or particle-laden fluids can clog passageways and create uneven flow patterns, putting additional strain on components.

Thermal and pressure conditions also play a major role. Repeated exposure to high temperatures can cause gaskets, seals, and certain materials to degrade, especially if they are not rated for those conditions. High operating pressure can stress welds and joints, increasing the risk of mechanical failure.

Beyond the working environment, maintenance practices significantly affect longevity. Routine inspections, cleaning, and diagnostic testing help catch early warning signs like pressure drops, leaks, or unusual temperature differences. Scheduled servicing ensures the exchanger continues to operate efficiently and safely.

Lastly, the initial build quality, including materials used and adherence to industry standards, determines how well a heat exchanger will handle operational stresses over time. Units built with premium materials and proper design tolerances tend to last longer, especially in demanding industrial applications.

Are Heat Exchangers Expensive?

The cost of a heat exchanger depends on several factors, including its size, material, pressure rating, and construction complexity.

Simple designs like brazed plate exchangers can be very cost-effective, especially for smaller systems, while complex custom-built shell and tube units used in large industrial processes can be quite expensive.

Get Ahead of Maintenance – Contact Us Today!

With our expanded services and smarter tracking, keeping your heat exchangers running at peak efficiency has never been easier.

📞 Contact us here to schedule a service or learn more about how our new system can benefit your operations.

May 6 2025

Shell and Tube Heat Exchanger: The Beginner’s Guide

admin Products, Service

A shell and tube heat exchanger is among the most reliable and widely used heat exchangers across many industries. Specifically, they serve as the backbone for efficient and durable thermal control in applications ranging from chemical processing to oil refineries, HVAC systems, and power plants. Moreover, these units offer robust construction, handle a range of fluids with versatility, and operate reliably under high pressure and temperature conditions. In this guide, we’ll explore their design, performance, cost considerations, and common issues so you can make a well-informed decision when selecting or maintaining one.

What Is a Shell and Tube Heat Exchanger?

A shell and tube heat exchanger is a mechanical device that facilitates heat transfer between two fluids without mixing them. It consists of a cylindrical shell that houses a bundle of tubes. One fluid flows through the tubes (the tube side), while the other fluid flows around the tubes inside the shell (the shell side). The design allows heat to pass through the tube walls, transferring thermal energy from the hotter fluid to the cooler one. This system is highly effective for both heating and cooling tasks.

Shell and Tube Heat Exchanger Types and Configurations

Shell and tube heat exchangers come in a few different configurations, each with their own benefits and applications:

Fixed Tube Sheet: This is the simplest and most cost-effective design. However, cleaning the shell side is more difficult since the tubes are permanently fixed.
U-Tube: In this design, the tubes bend into a U-shape, which allows for better thermal expansion. Additionally, this configuration makes it easier to clean the tube side.
Floating Head: This design offers maximum flexibility and simplifies maintenance. For example, operators can remove the tube bundle for cleaning, making it ideal for applications prone to fouling.

The right configuration depends on the application’s temperature cycles, risk of fouling, and maintenance preferences.

How the Shell and Tube Heat Exchanger Works

The process begins when one fluid flows through the tubes while another fluid circulates around them inside the shell. Depending on the thermal requirements, the fluids may flow in the same direction (parallel flow), opposite directions (counterflow), or even in crossflow configurations. Counterflow arrangements generally offer the highest thermal efficiency, as they maintain a greater temperature difference across the heat exchanger’s length.

Key Applications Across Industries

Engineers use shell and tube heat exchangers wherever they need durability and large-scale heat transfer.

Oil and Gas: Used extensively to cool lube oils, condense vapours, and recover waste heat.
Chemical Processing: Helps in regulating and controlling reaction temperatures.
Power Generation: Used to preheat boiler feedwater and condense exhaust from turbines.
HVAC Systems: Essential for large-scale air or water heating and cooling operations.

Their modular design and customisation options make them suitable for virtually any thermal application.

Advantages of the Shell and Tube Heat Exchanger

Durability: Built to withstand extreme conditions including high pressure and temperature.
Versatility: Compatible with a wide variety of fluids, including corrosive and fouling-prone media.
Serviceability: Many designs allow for individual tube replacement, cleaning, or repairs without replacing the entire unit.
Customisation: Engineers can design units to meet specific flow rates, pressure drops, or spatial constraints.

Disadvantages to Consider

Despite their many benefits, there are a few limitations:

Larger Footprint: These exchangers tend to be bulkier than plate heat exchangers.
Higher Initial Cost: These systems cost more upfront, though their longer service life may offset the initial expense.
Cleaning Complexity: Some designs, particularly fixed tube sheet models, are harder to access and clean thoroughly.

Maintenance and Longevity for Your Shell and Tube Heat Exchanger

To maintain optimal function, routine maintenance is critical to ensuring peak performance and long lifespan. Common service tasks include:

Tube Cleaning: This involves the periodic removal of scale, sludge, or biological fouling using mechanical or chemical methods.
Leak Detection: Typically, technicians perform hydrostatic or pneumatic tests to identify weak points or failed seals.
Tube Plugging or Replacement: Technicians can temporarily plug or fully replace leaking tubes to restore function.

Well-maintained units can last for decades, often with just minor interventions required.

Common Failure Points and Prevention

Fouling: Over time, the build-up of debris, sludge, or scale impairs heat transfer and increases pressure drop. Therefore, preventive cleaning and pre-filtration of fluids help minimise this.
Corrosion: Using improper materials or exposing the unit to aggressive fluids can lead to structural failure. Material compatibility is key.
Thermal Stress: Sudden or repeated temperature changes can cause expansion and contraction damage. Allowing gradual temperature shifts and using appropriate materials helps mitigate this.

Cost Breakdown and Value

The cost of a shell and tube heat exchanger varies depending on size, material, and complexity.

While the initial price tag is usually higher than compact alternatives like plate heat exchangers, shell and tube units can be preferred over plate heat exchangers when handling high pressures, high temperatures, larger heat duties, or applications requiring a close approach temperature, making them a smart investment for demanding industrial environments.

Shell and tube heat exchangers are a cornerstone of industrial heat transfer. Their ability to withstand high pressures and temperatures, manage large heat duties, and achieve close approach temperatures makes them the preferred choice for demanding industrial applications. Whether you’re replacing an existing unit or planning a new installation, understanding their design, operation, and maintenance will help you optimise your system’s thermal performance and reliability.

Get Ahead of Maintenance – Contact Us Today!

With our expanded services and smarter tracking, keeping your heat exchangers running at peak efficiency has never been easier.

📞 Contact us here to schedule a service or learn more about how our new system can benefit your operations.

April 23 2025

Plate Heat Exchanger: The Detailed Guide

admin Products, Service

The plate heat exchanger (PHE) serves a wide range of industries that rely on efficient and compact heat transfer. Industries such as HVAC, food and beverage processing, power generation, and chemical manufacturing rely heavily on these devices to achieve precise temperature control and maximise energy efficiency. In this blog, we’ll explore the key factors affecting plate heat exchangers, including cost, common issues, and performance considerations, so you can make a more informed decision when selecting or maintaining one.

How Much Does a Plate Heat Exchanger Cost?

The cost of a plate heat exchanger can vary significantly depending on several important factors. First and foremost, the size and capacity of the unit play a major role. For instance, smaller units intended for residential or small commercial use generally range from $1,000 to $10,000. On the other hand, large industrial models can easily exceed $100,000, as they require more plates, reinforced frames, and more complex flow paths to handle higher demands.

In addition to size, materials also influence pricing. While standard stainless steel is cost-effective and works for most applications, special materials such as titanium or alloy steels are necessary for corrosive environments like marine or chemical processing. These materials come at a premium. Similarly, the choice of gasket material, whether EPDM, PTFE, or nitrile, affects cost, depending on its resistance to chemicals and high temperatures.

Other Cost Considerations: Customisation, Brand, and Maintenance

The cost of a plate heat exchanger (PHE) can vary significantly depending on several factors, including its size, materials, and application. While it’s difficult to provide an exact price without specific details, the following factors can give you a general idea of the cost range and what influences the price.

Customisation and complexity can significantly increase the total price. Off-the-shelf models are typically more affordable and quicker to acquire, whereas custom-built units designed for specific dimensions or flow rates incur additional design and manufacturing expenses. Likewise, the flow configuration matters. Standard counter-current systems are more common and cost-effective, while advanced options like cross-flow or multi-stream designs often cost more due to their specialised functionality.

Moreover, the brand and manufacturer can impact the price. Established brands may command a higher upfront cost, but they usually offer better reliability, faster delivery times, and more comprehensive after-sales support. Finally, we must consider installation and maintenance. Depending on site conditions and system complexity, installation alone can add thousands of dollars. Over time, you’ll need to factor in ongoing expenses like cleaning, gasket replacements, and part wear when calculating the total cost of ownership.

Here’s a breakdown of cost ranges by application:

Application Type	Estimated Cost Range
Small to Medium Applications	$1,000 – $10,000+
Large Industrial Applications	$10,000 – $100,000+

Common Issues with a Plate Heat Exchanger

Although plate heat exchangers offer reliable and easy maintenance, users can still encounter several common issues. For example, fouling and scaling often occur due to mineral deposits, biofilms, or dirt accumulating on the plates. This can reduce heat transfer efficiency and cause blockages. Regular cleaning, either chemically or mechanically, is the most effective way to prevent this.

Another issue is leaking, typically caused by worn-out or incorrectly installed gaskets. Leaks often cause fluid loss and reduced performance, so you should inspect the unit regularly and torque the bolts correctly. In addition, using incompatible materials with certain fluids may lead to corrosion, making material selection a critical step. Using corrosion-resistant metals like titanium can mitigate this problem.

Thermal expansion and stress also pose risks, especially in systems dealing with extreme temperature changes or mismatched materials. To counteract this, ensure all materials are compatible and monitor operating conditions closely. Furthermore, gasket failure can result from chemical attack, improper installation, or general wear and tear. Choosing the right gasket material and replacing it on a regular basis is critical for ongoing performance.

Besides these, pressure drop issues may arise if blockages or fouling are present or if the flow rate is too low. Monitoring flow and cleaning as needed will help maintain system efficiency. Other issues such as plate damage or cracking, improper plate alignment, and incorrect installation usually stem from poor handling or failure to follow manufacturer guidelines. Each of these problems can be prevented or quickly addressed through routine inspections and proper assembly procedures. Lastly, over- or under-tightening the unit can compromise performance, so always use a torque wrench and follow the recommended specifications.

https://www.youtube.com/watch?v=sa5gJIVHQVM

What Influences Efficiency?

Several key factors determine the efficiency of a plate heat exchanger. The primary factor is the plate design and surface area. Plates with corrugated patterns generate turbulence in the fluids, which significantly improves heat transfer. Additionally, increasing the number of plates expands the surface area, further enhancing performance.

The flow arrangement is another major factor. Counter-current flow, where fluids move in opposite directions, offers the highest efficiency by maintaining a greater temperature difference throughout the exchanger. In contrast, co-current and cross-flow arrangements are less effective, although they may be better suited for specific scenarios.

Fluid velocity is also important. While higher velocities increase turbulence and heat transfer rates, they also lead to greater pressure drops. Thus, achieving the right balance is essential. The temperature difference between the hot and cold fluids is also a driving force in heat exchange; a greater difference generally leads to better performance, while smaller approach temperatures can reduce effectiveness.

A short GIF demonstrating computational fluid dynamics in heat transfer using a plate heat exchanger.

Operational and Maintenance Factors That Affect Performance

Fluid properties also come into play. Fluids with higher thermal conductivity exchange heat more effectively. Conversely, fluids with high viscosity tend to flow more slowly and reduce heat transfer rates. Specific heat capacity also matters, as it determines how much energy a fluid can absorb during the process.

Another factor to consider is the pressure drop across the exchanger. A high pressure drop can increase operating costs, so the system should be designed to minimise resistance without compromising heat transfer. At the same time, fouling resistance is crucial. Keeping plates clean and using fouling-resistant materials or coatings can greatly improve long-term efficiency.

Gasket integrity also impacts performance. A failed gasket can cause leaks and shutdowns, so choosing compatible materials and performing routine checks is essential. Additionally, maintenance and cleaning routines are critical. Neglected units quickly lose efficiency, while well-maintained systems continue to perform optimally.

Lastly, design and sizing play a crucial role. An undersized exchanger will struggle to meet demand, whereas an oversized one may incur unnecessary capital and operating costs. Consistent operational conditions such as steady temperatures and flow rates also help maintain reliable performance over time.

Are Plate Heat Exchangers Cost-Effective?

In many situations, plate heat exchangers prove to be more cost-effective than traditional shell and tube models. Not only are they generally cheaper to purchase and install, but they also offer advantages in terms of space, maintenance, and flexibility. For example, PHEs can be cleaned and serviced on-site without disconnecting pipework, which drastically reduces downtime.

That said, there are some trade-offs to consider. Although shell and tube exchangers often have longer lifespans, they require more space and can be significantly more expensive to repair or modify. Ultimately, the cost-effectiveness of a plate heat exchanger depends on your specific needs, especially when it comes to budget, space constraints, operating conditions, and maintenance requirements.

Plate heat exchangers offer a flexible, compact, and efficient solution for a wide variety of thermal applications. By understanding the costs, recognising common issues, and considering the factors that influence performance, you can make more informed decisions when selecting, operating, or maintaining a plate heat exchanger. Whether you’re managing a small commercial system or a large-scale industrial operation, getting these details right will lead to better outcomes in the long run.

Get Ahead of Maintenance – Contact Us Today!

With our expanded services and smarter tracking, keeping your heat exchangers running at peak efficiency has never been easier.

📞 Contact us here to schedule a service or learn more about how our new system can benefit your operations.

March 6 2025

Heat Exchanger Repair Service Upgrades at InKorr

admin Products

At InKorr, we know how crucial heat exchanger performance is to your operations, because regular maintenance and early fault detection can mean the difference between smooth production and a costly heat exchanger repair. That’s why we’ve enhanced our maintenance services and reporting system, giving you better diagnostics, clearer records, and proactive service reminders to keep your equipment in top shape.

What’s New With Our Heat Exchanger Repair?

We’ve upgraded our service scope with new diagnostic tests, improved reporting, and smarter maintenance tracking, ensuring faster fault detection and long-term equipment reliability. Here’s how these changes benefit you:

1. Advanced Diagnostic Testing

Our technicians now offer new inspection methods to detect problems early and help you avoid unexpected breakdowns:

Thermal Imaging Inspections – Identify blockages, poor flow, and inefficiencies inside your heat exchangers. ✅

Full Heat Exchanger Health Check – Monitor flow rates and temperature to ensure optimal performance. ✅

These new services complement our existing tests, including:

Hydraulic & Pneumatic Pressure Testing ✅

Gas Leak Testing ✅

UV Dye Penetrant Inspection ✅

Plate Crack Testing ✅

Individual Tube Pressure Testing for shell & tube exchangers ✅

NATA Certified Testing for compliance needs ✅

A heat diagram of Computational Fluid Dynamics in a heat exchanger plate

2. Smarter, More Transparent Reporting

We’ve upgraded our reporting system to help you keep better records of maintenance and performance. Our new system allows for:

Initial Inspection Reports – Get an early view of potential faults before any repairs begin. ✅

Final Reports with Work Details – See not only what work was performed on your heat exchangers but also the full details for complete transparency. ✅

Serial Number-Based Tracking – Not only can you keep a full history of maintenance for each unit, but you can also ensure accurate records and easier traceability. ✅

Regular Equipment Maintenance Summaries – Get detailed insights into all serviced equipment on your site, making it easier to monitor overall maintenance performance. ✅

Automated Maintenance Reminders – Never miss a service again because of our reminders. ✅

3. A Complete Range of On-Site & In-House Heat Exchanger Repair Services

We continue to provide comprehensive maintenance solutions, including:

Chemical Descaling & CIP Cleaning ✅

Complete Disassembly, Re-Gasketing & Reassembly ✅

Gas Leak Detection & Pressure Testing ✅

Installation of New Parts & Equipment ✅

What This Means for You

Less Downtime – Prevent equipment failures before they happen. ✅

Better Performance – Not only does our new diagnostics optimise heat exchanger efficiency, but it also enhances overall performance. ✅

Easier Compliance – In addition, our automated reporting tracks all maintenance records to track your maintenance records effortlessly ✅

More Savings – Likewise, catching small issues early helps avoid an expensive heat exchanger repair. ✅

Get Ahead of Maintenance, Contact Us Today!

With our expanded services and smarter tracking, keeping your heat exchangers running at peak efficiency has never been easier.

📞 Contact us here to schedule a service or learn more about how our new system can benefit your operations.

February 17 2025

Heat Transfer in Heat Exchangers: Comprehensive Guide

admin Products

Heat transfer is a fundamental process in engineering, playing a crucial role in various industries, from power generation to HVAC systems. One of the most efficient ways to manage heat transfer is through the use of heat exchangers. This is because these devices facilitate the transfer of thermal energy between two or more fluids without mixing them, improving energy efficiency and process performance.

Fundamentals of Heat Transfer

Heat transfer occurs through three primary mechanisms: conduction, convection, and radiation. In heat exchangers, conduction and convection are the dominant ways heat transfers:

Radiation: The transfer of energy through electromagnetic waves. Although present, radiation is typically negligible in most heat exchanger applications.

Conduction: The transfer of heat through a solid material. In heat exchangers, metal walls separate the hot and cold fluids, allowing heat to pass through via conduction.

Convection: The movement of heat through a fluid (liquid or gas) due to temperature-induced motion. This can be enhanced by turbulence, which then increases the rate of heat transfer.

A person holding a pot of water over a fire, describing convection, conduction, and radiation.

Types of Heat Exchangers Used in Heat Transfer Applications

Several types of heat exchangers serve different applications, efficiency requirements, and space constraints. The most common types include:

1. Shell and Tube Heat Exchangers

These are widely used in industrial applications, including chemical processing and power plants. They consist of a bundle of tubes enclosed within a shell. One fluid flows through the tubes while another fluid flows around them, allowing efficient heat transfer.

2. Plate Heat Exchangers

These consist of multiple thin, corrugated plates that provide a large surface area for transferring heat. Engineers commonly use them in food processing, HVAC, and refrigeration because of their compact size and high efficiency.

3. Spiral Heat Exchangers

Spiral heat exchangers use a coiled design to promote efficient heat transfer while reducing pressure drop and fouling. Engineers often use them in applications involving viscous fluids, slurries, and wastewater treatment.

4. Graphite Heat Exchangers

Graphite heat exchangers offer excellent corrosion resistance and thermal conductivity, making them ideal for handling highly corrosive fluids in chemical processing and pharmaceutical industries.

Factors Affecting Heat Transfer in Heat Exchangers

Several factors influence the effectiveness of heat transfer in heat exchangers:

Temperature Difference: The larger the temperature gradient between the fluids, the higher the heat transfer rate.
Surface Area: Many heat exchangers have extended surfaces like fins or plates because a larger surface area improves efficiency.
Heat Exchanger Design: The overall design affects how fluids mix during heat transfer. More fluid mixing leads to better heat transfer effectiveness by creating a more uniform temperature profile throughout the liquid.
Flow Arrangement: The relative movement of the fluids impacts performance. The common configurations include:
- Parallel Flow: Both fluids move in the same direction.
- Counterflow: Fluids move in opposite directions, which allows higher efficiency compared to parallel flow.
- Crossflow: Fluids move perpendicular to each other, commonly used in air-cooled heat exchangers.
Material Selection: Materials with high thermal conductivity, such as copper, enhance efficiency.
Fluid Properties: The viscosity, density, and specific heat capacity of fluids impact performance.
Fouling and Scaling: Deposits on heat exchanger surfaces reduce efficiency because they insulate the surfaces. Regular maintenance and cleaning help mitigate this issue.

Applications of Heat Exchangers

Heat exchangers are essential in various industries, including:

Power Plants: Heat exchangers are also used in boilers, condensers, and cooling systems to efficiently manage heat flow.
HVAC Systems: Essential for heating, ventilation, and air conditioning applications.
Chemical Processing: Used in reactors and distillation units because they provide precise temperature control.
Marine and Pool Applications: Heat exchangers are widely used in marine systems for engine cooling and in swimming pools for efficient water heating.
Food and Beverage Industry: Heat exchangers also ensure proper thermal processing in pasteurisation and refrigeration.

Computational Fluid Dynamics (CFD) in Heat Transfer

Computational Fluid Dynamics (CFD) is a powerful tool used to analyse and optimise heat transfer processes in engineering applications. CFD simulations allow engineers to visualise and predict fluid flow behaviour, temperature distribution, and heat transfer efficiency within heat exchangers. By solving complex mathematical equations that govern fluid dynamics and thermal transport, CFD helps in designing more efficient heat exchangers while reducing the need for costly physical prototypes.

CFD is particularly useful in evaluating different heat exchanger configurations, assessing turbulence effects, and identifying potential inefficiencies like hot spots or pressure drops. Additionally, it enables engineers to study the impact of various parameters, such as fluid velocity, material selection, and flow arrangement, to enhance overall performance. As computational power continues to advance, CFD remains an indispensable tool for improving heat exchanger designs across industries like power generation, chemical, HVAC systems, and food and beverage processing.

A close-up shot of Computational Fluid Dynamics in CAD

Heat transfer is a crucial process in engineering, and heat exchangers play a vital role in enhancing efficiency across various applications. Understanding its principles, the types of heat exchangers, and the factors affecting their performance helps in selecting the right system for specific needs. Heat exchangers continue to evolve because of advancements in materials and design, contributing to energy conservation and sustainability in modern industries.

If you’re looking for heat exchanger solutions for your business, our experienced team can sort it out for you. Contact us here to get started.

April 17 2024

Pool Exchanger Plates Swap: Lower Plate Heat Exchanger Price

admin Products

Introducing InKorr’s Innovative Exchanger Plates Swap Program for Commercial Swimming Pools

At InKorr, we’re thrilled to unveil our latest solution tailored specifically for commercial swimming pools: the Plate Swap Program. Designed to revolutionize pool maintenance, this program offers a seamless and cost-effective way for pool operators to ensure optimal performance year-round without the hassle of traditional plate maintenance.

How Does It Work?

Our Plate Swap Program operates on a simple yet ingenious concept. We maintain a pool of common titanium plates that have undergone our rigorous cleaning and testing process. When a pool’s plates become dirty or damaged, instead of undergoing the time-consuming process of removal, cleaning, and testing, pool operators can simply swap them out with plates from our service program.

Benefits

Minimal Downtime: With our Plate Swap Program, downtime is reduced to a minimum. Pool maintenance becomes a breeze as plates can be swiftly swapped without disrupting regular operations.
Cost-Efficiency: Say goodbye to unexpected expenses! By participating in our program, pool management can rely on a regular rotation of plates, eliminating the need for costly purchases of new plates. Clear budgeted costs ensure financial stability and peace of mind.
Optimized Performance: Clean and fully tested plates mean optimized performance for your commercial swimming pool. You can trust that your pool will maintain its peak functionality, even during critical times like winter, without the risk of breakdowns or loss of heating.

Why Choose InKorr?

InKorr stands out for its commitment to innovation and excellence in pool maintenance solutions. With our Plate Swap Program, we combine convenience, reliability, and cost-effectiveness to meet the unique needs of commercial pool operators.

Don’t let high plate heat exchanger prices hold your pool back. Join the countless satisfied customers who have already experienced the difference with InKorr’s Plate Swap Program. Get in touch with us today to learn more and take the first step towards hassle-free pool maintenance!
