Plate Heat Exchanger: The Detailed Guide

The plate heat exchanger (PHE) serves a wide range of industries that rely on efficient and compact heat transfer. Industries such as HVAC, food and beverage processing, power generation, and chemical manufacturing rely heavily on these devices to achieve precise temperature control and maximise energy efficiency. In this blog, we’ll explore the key factors affecting plate heat exchangers, including cost, common issues, and performance considerations, so you can make a more informed decision when selecting or maintaining one.

How Much Does a Plate Heat Exchanger Cost?

The cost of a plate heat exchanger can vary significantly depending on several important factors. First and foremost, the size and capacity of the unit play a major role. For instance, smaller units intended for residential or small commercial use generally range from $1,000 to $10,000. On the other hand, large industrial models can easily exceed $100,000, as they require more plates, reinforced frames, and more complex flow paths to handle higher demands.

In addition to size, materials also influence pricing. While standard stainless steel is cost-effective and works for most applications, special materials such as titanium or alloy steels are necessary for corrosive environments like marine or chemical processing. These materials come at a premium. Similarly, the choice of gasket material, whether EPDM, PTFE, or nitrile, affects cost, depending on its resistance to chemicals and high temperatures.

Other Cost Considerations: Customisation, Brand, and Maintenance

The cost of a plate heat exchanger (PHE) can vary significantly depending on several factors, including its size, materials, and application. While it’s difficult to provide an exact price without specific details, the following factors can give you a general idea of the cost range and what influences the price.

Customisation and complexity can significantly increase the total price. Off-the-shelf models are typically more affordable and quicker to acquire, whereas custom-built units designed for specific dimensions or flow rates incur additional design and manufacturing expenses. Likewise, the flow configuration matters. Standard counter-current systems are more common and cost-effective, while advanced options like cross-flow or multi-stream designs often cost more due to their specialised functionality.

Moreover, the brand and manufacturer can impact the price. Established brands may command a higher upfront cost, but they usually offer better reliability, faster delivery times, and more comprehensive after-sales support. Finally, we must consider installation and maintenance. Depending on site conditions and system complexity, installation alone can add thousands of dollars. Over time, you’ll need to factor in ongoing expenses like cleaning, gasket replacements, and part wear when calculating the total cost of ownership.

Here’s a breakdown of cost ranges by application:

Common Issues with a Plate Heat Exchanger

Although plate heat exchangers offer reliable and easy maintenance, users can still encounter several common issues. For example, fouling and scaling often occur due to mineral deposits, biofilms, or dirt accumulating on the plates. This can reduce heat transfer efficiency and cause blockages. Regular cleaning, either chemically or mechanically, is the most effective way to prevent this.

Another issue is leaking, typically caused by worn-out or incorrectly installed gaskets. Leaks often cause fluid loss and reduced performance, so you should inspect the unit regularly and torque the bolts correctly. In addition, using incompatible materials with certain fluids may lead to corrosion, making material selection a critical step. Using corrosion-resistant metals like titanium can mitigate this problem.

Thermal expansion and stress also pose risks, especially in systems dealing with extreme temperature changes or mismatched materials. To counteract this, ensure all materials are compatible and monitor operating conditions closely. Furthermore, gasket failure can result from chemical attack, improper installation, or general wear and tear. Choosing the right gasket material and replacing it on a regular basis is critical for ongoing performance.

Besides these, pressure drop issues may arise if blockages or fouling are present or if the flow rate is too low. Monitoring flow and cleaning as needed will help maintain system efficiency. Other issues such as plate damage or cracking, improper plate alignment, and incorrect installation usually stem from poor handling or failure to follow manufacturer guidelines. Each of these problems can be prevented or quickly addressed through routine inspections and proper assembly procedures. Lastly, over- or under-tightening the unit can compromise performance, so always use a torque wrench and follow the recommended specifications.

What Influences Efficiency?

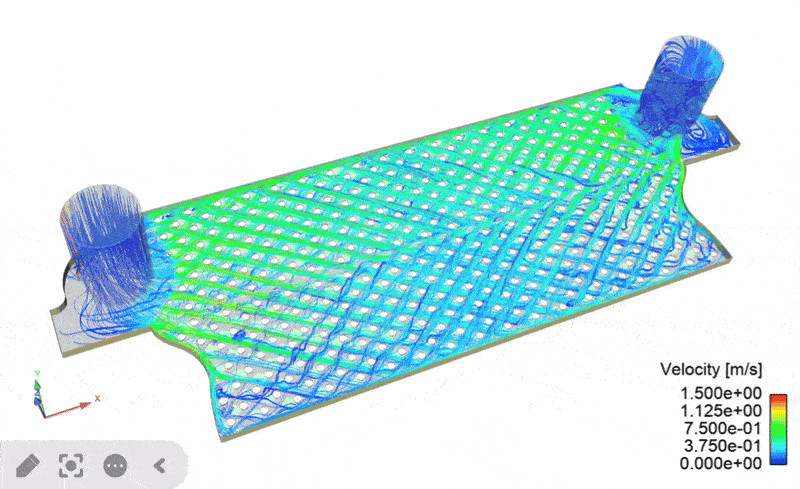

Several key factors determine the efficiency of a plate heat exchanger. The primary factor is the plate design and surface area. Plates with corrugated patterns generate turbulence in the fluids, which significantly improves heat transfer. Additionally, increasing the number of plates expands the surface area, further enhancing performance.

The flow arrangement is another major factor. Counter-current flow, where fluids move in opposite directions, offers the highest efficiency by maintaining a greater temperature difference throughout the exchanger. In contrast, co-current and cross-flow arrangements are less effective, although they may be better suited for specific scenarios.

Fluid velocity is also important. While higher velocities increase turbulence and heat transfer rates, they also lead to greater pressure drops. Thus, achieving the right balance is essential. The temperature difference between the hot and cold fluids is also a driving force in heat exchange; a greater difference generally leads to better performance, while smaller approach temperatures can reduce effectiveness.

Operational and Maintenance Factors That Affect Performance

Fluid properties also come into play. Fluids with higher thermal conductivity exchange heat more effectively. Conversely, fluids with high viscosity tend to flow more slowly and reduce heat transfer rates. Specific heat capacity also matters, as it determines how much energy a fluid can absorb during the process.

Another factor to consider is the pressure drop across the exchanger. A high pressure drop can increase operating costs, so the system should be designed to minimise resistance without compromising heat transfer. At the same time, fouling resistance is crucial. Keeping plates clean and using fouling-resistant materials or coatings can greatly improve long-term efficiency.

Gasket integrity also impacts performance. A failed gasket can cause leaks and shutdowns, so choosing compatible materials and performing routine checks is essential. Additionally, maintenance and cleaning routines are critical. Neglected units quickly lose efficiency, while well-maintained systems continue to perform optimally.

Lastly, design and sizing play a crucial role. An undersized exchanger will struggle to meet demand, whereas an oversized one may incur unnecessary capital and operating costs. Consistent operational conditions such as steady temperatures and flow rates also help maintain reliable performance over time.

Are Plate Heat Exchangers Cost-Effective?

In many situations, plate heat exchangers prove to be more cost-effective than traditional shell and tube models. Not only are they generally cheaper to purchase and install, but they also offer advantages in terms of space, maintenance, and flexibility. For example, PHEs can be cleaned and serviced on-site without disconnecting pipework, which drastically reduces downtime.

That said, there are some trade-offs to consider. Although shell and tube exchangers often have longer lifespans, they require more space and can be significantly more expensive to repair or modify. Ultimately, the cost-effectiveness of a plate heat exchanger depends on your specific needs, especially when it comes to budget, space constraints, operating conditions, and maintenance requirements.

Plate heat exchangers offer a flexible, compact, and efficient solution for a wide variety of thermal applications. By understanding the costs, recognising common issues, and considering the factors that influence performance, you can make more informed decisions when selecting, operating, or maintaining a plate heat exchanger. Whether you’re managing a small commercial system or a large-scale industrial operation, getting these details right will lead to better outcomes in the long run.
