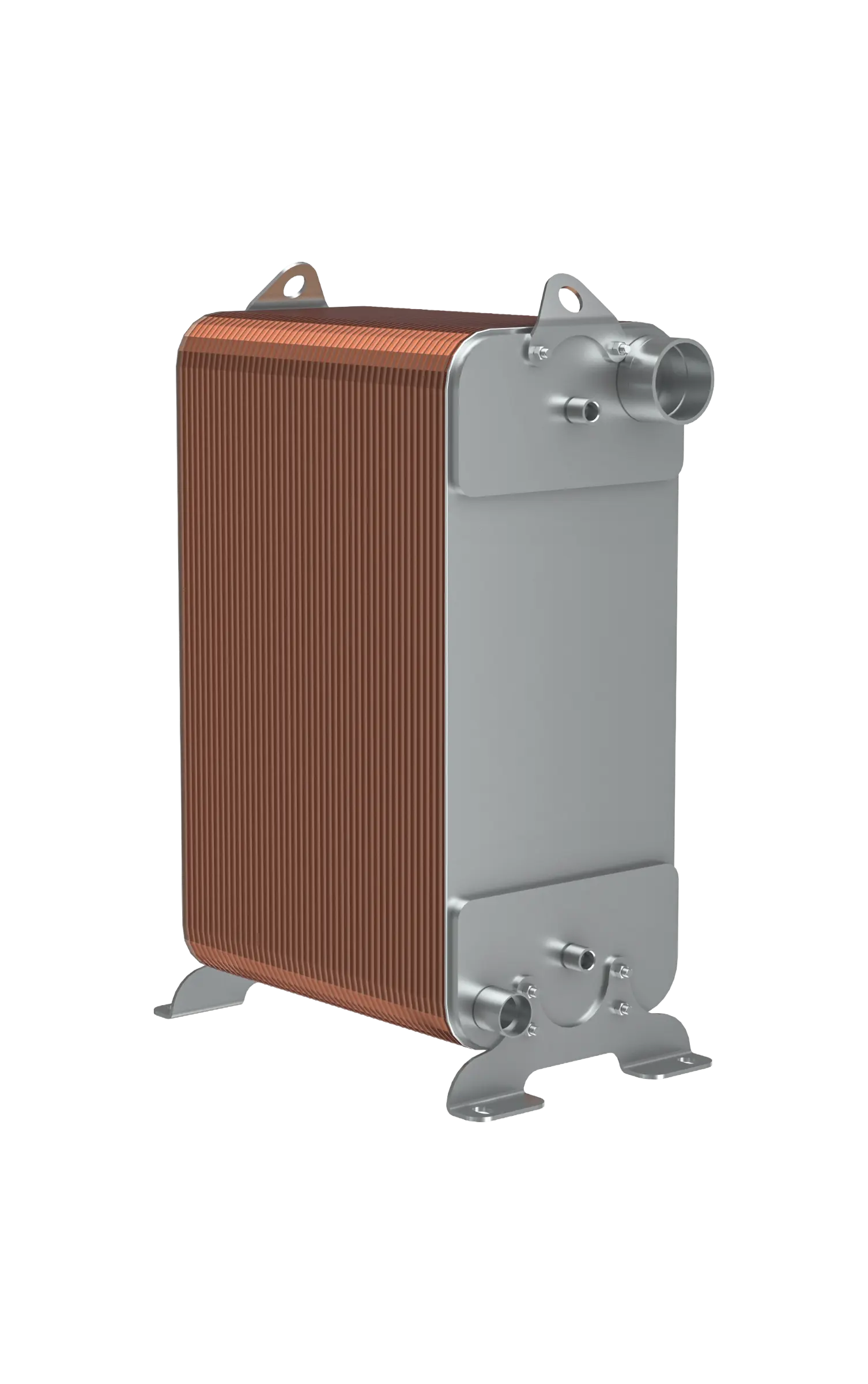

Brazed Plate Heat Exchangers
Brazed plate heat exchangers can perform in nearly any duty where a shell & tube heat exchanger could be applied. Their high turbulence plates and compact design result in equipment that can be 5 times smaller for a given application. Our plate designs offer some of the highest heat transfer rates in the industry meaning that we can often provide a solution with an optimised price.
More Information
For more information about our brazed plate heat exchangers, download our brochure.
Advantages of Our Products
- A robust, reliable brazed joint means that you need not worry about failures and leaks.
- Our best in class double wall design with fixed drainage points ensures that process fluids cannot intermix. This is particularly important for potable water heat exchangers.
- We have many solutions for refrigeration including dual circuit designs and special distribution systems to ensure optimal flow of refrigerant.
- Although our products are highly standardized, we can offer many different nozzle sizes, designs and locations.
- We are happy to adapt the external design of our equipment for OEM clients who have limited space.
- Our proven nickel brazing technology makes our equipment the perfect choice for applications like ammonia refrigeration where copper brazing cannot be used.
Design Options
- Heat transfer areas to 100m2
- Flow rates up to 180 m3/hr
- Single wall or double wall
- 6mm to 100mm connections
- SS316L plates
- Cu or Ni brazing material
- Many mounting options available
- Design P = 30 bar (Custom = 70 bar)
- Design T = 230 deg
Numerous Applications
- Oil cooling
- Air drying
- Heat recovery
- Fuel oil preheating
- Gas cooling
- Transmission cooling
- Refrigerant evaporators
- Refrigerant condensers
- Sub-coolers & de-superheaters
- Compressor oil cooling
- Domestic hot water
- Radiant floor
- Solar hot water
- District heat
- Swimming pool
- Geothermal
